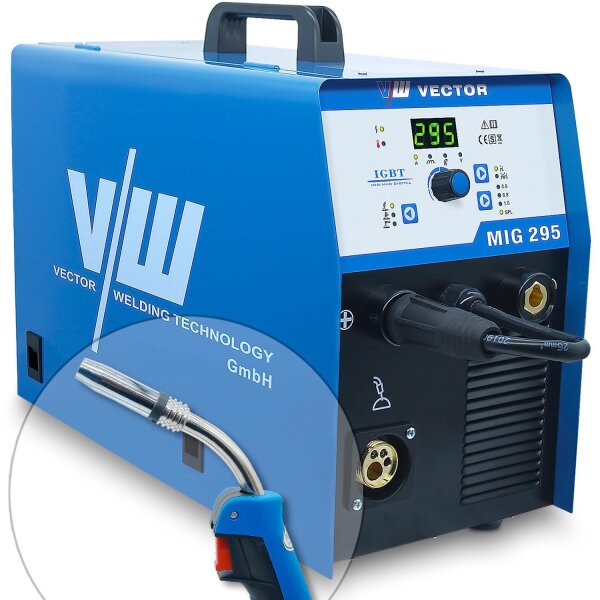

MIG MAG welder 295A, MMA electrode 250A, 400V, IGBT, for 5kg/15kg wire reel | MIG295A

SKU: M2295B
GTIN: 4251210406380
Category: MIG MAG
Brands: VECTOR WELDING

MIG MAG welder 295A, MMA electrode 250A, 400V, IGBT, for 5kg/15kg wire reel | MIG295A

VECTOR WELDING MIG/MAG welding device MIG 295A

MIG/MAG 30-295A

2 cycle/ 4 cycle

MMA/electrode 30-250A

IGBT

suitable: wire coils 5kg (D200) & 15kg (D300) - NOT included in delivery

629,41 €

excl. 19% VAT , plus (Standard)

Manufacturers recommended retail price: 949,00 €

Available immediately
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

pcs.

Article number: M2295B

Welding device MIG 295A

The MIG 295A from Vector Welding is a MIG/MAG welding device with 30-295A in MIG/MAG mode, 30-250A in MMA mode, as well as 10-280A in TIG mode (optional).

The MIG/MAG welding process with its automatic wire feedis suitable for many welding applications, even when working in hard-to-reach places.

MIG 295A PROPERTIES & ADVANTAGES:

MIG/MAG: welding with automatic wire feed. In MIG welding argon (rarely helium) is used as shielding gas, this process is preferably used for non-ferrous metals and stainless steel. The MAG process uses CO2 or a mixed gas of argon, CO2 and O2 as shielding gas and is mainly used for welding of non-ferrous metals and stainless steeland is mainly used for simple and low-alloy steel such as construction steel.
Settings according to wire thickness: If you set the wire thickness (0.6 | 0.8 | 1), an ampere (A) and wire feed speed adapted to the selected wire thickness appears. The amperage can be changed within the given range. .
In SPL Mode, amps and volts can be set independently. A higher volt slows the wire speed down. A lower volt accelerates the wire feed. This is a great advantage when an individual setting is required. With the help of the job memory the settings can be saved and easily reused at a later date.
inductance: The device has a continuously adjustable choke. This smoothes the welding current and changes the rate of current rise so that the weld seam quality and precision is improved.
2 cycles/4 cycles (MIG/MAG and TIG)
MMA/STICK/E-HAND: coated electrodes are used - in this process the electrodes are arc carrier and filler metal in one.
Hotstart: Each time the welding unit is restarted, overcurrent is provided to support the ignition of the arc.
Arc Force: Melted material is transferred to the workpiece more easily. Prevents the arc from going out if this material causes contact between the electrode and the molten pool.
Anti-Stick automatically switches off the welding generator if the electrode sticks to the workpiece and has to be removed by hand without damaging the electrode clampto be damaged.
DC TIG welding ( optional: only possible with additional hose package and cables): Welding of almost all metals
Lift Arc: The ignition takes place on contact with the workpiece, then the torch can be lifted and welding process starts with the selected parameters.
modern IGBT (Insulated Gate Bipolar Transistor) enables fast and therefore low-loss switching of electrical currents
Overheating protection

MIG 295A FEATURES:

MIG 295A TECHNICAL DETAILS:

Welding current setting range (MIG/MAG mode)	30 - 295 A
Welding current setting range (MMA/STICK mode)	30 - 2500 A
Welding current setting range (TIG mode)	10 - 280 A
Duty cycle (ED) MIG/MAG 40°C	295 A at 28.8V 60%
Duty cycle (E(ED) MMA/STICK 40°C	250 A at 30V 60%
Cycle time (ED) TIG 40°C	280 A at 21.2V 60%
Mains voltage	400 Volt/3 phases
Mains frequency	50 - 60 Hz
Protection class	IP23S
Dimensions in mm (L x W x H)	493 x 222 x 375
Weight in kg	13
Standards	EN60974-1 / IEC60974-1
Wire diameter in mm	0.6/0.8/1

MIG 295A CONTROLLER:

1. on/off	4. welding mode	7. 2 cycle/ 4 cycle
2. superheat display	5. display display display	8. selection wire gauge
3. parameter setting	6. ampere/inductivity/burn-back/volt

:	Basic Series
Shipping weight:	18,50 kg
Item weight:	15,70 kg

MIG 295A TECHNICAL DETAILS:

setting range welding current (MIG/MAG mode)	30 - 295 A
setting range welding current (MMA/STICK mode)	30 - 2500 A
setting range welding current (TIG mode)	10 - 280 A
duty cycle (ED) MIG/MAG 40°C	295 A at 28, 8V 60%
duty cycle (ED) MMA/STICK 40°C	250 A at 30V 60%
duty cycle (ED) TIG 40°C	280 A at 21, 2V 60%
mains voltage	400 Volt/3 phases
mains frequency	50 - 60 Hz
Protection class	IP23S
Dimensions in mm (L x W x H)	493 x 222 x 375
weight in kg	13
standards	EN60974- 1 / IEC60974-1
wire diameter in mm	0, 6/0.8/1
