TCM250 Multi-combination welding machine SET - MIG/MAG, TIG, MMA & Plasma with accessories

SKU: TCM250SET1
GTIN: 4251210410783
Category: Welding Machines
Brands: VECTOR WELDING

TCM250 Multi-combination welding machine SET - MIG/MAG, TIG, MMA & Plasma with accessories

VECTOR WELDING TCM250 Multi-combination welding machine SET - MIG/MAG, TIG, Plasma & MMA in one machine

MIG/MAG: 30-200 A - Welding with automatic wire feed

TIG: 10-200 A - Fine work on steel and stainless steel

Plasma: 10-50 A - Cutting sheet metal up to 12 mm

MMA/electrode: 30-170 A - Welding with coated stick electrodes

2-stroke / 4-stroke with pulse function for controlled arc control

IGBT inverter technology for efficient work

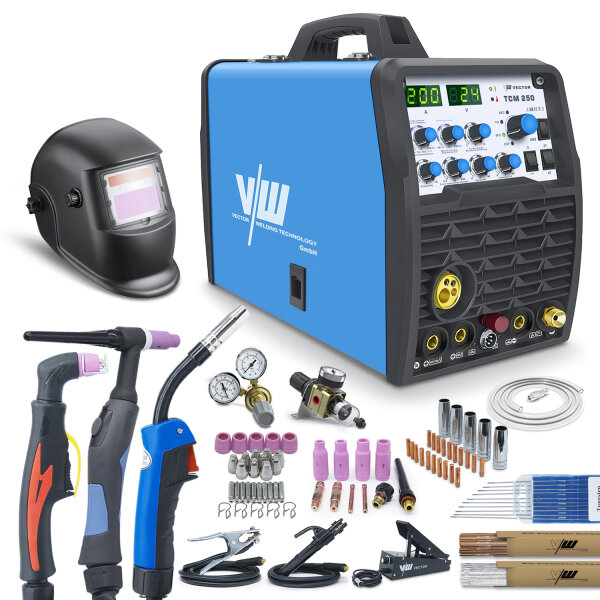

Complete set: device, helmet, foot pedal, pressure reducer, tungsten electrodes, welding rods, plasma accessories and much more.

Suitable for wire spools: 1 kg (D100) & 5 kg (D200) - not included

730,25 €

excl. 19% VAT , plus (Standard)

Available immediately
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

pcs.

MULTI-COMBINATION WELDING MACHINE TCM250 - COMPLETE SET

The TCM250 from VECTOR WELDING is a powerful 4-in-1 device for MIG/MAG, TIG, MMA welding and plasma cutting. With up to 200 A welding current, it offers maximum flexibility for workshop, assembly and home use. Thanks to MCU control, IGBT inverter technology and a digital display, precise control is guaranteed at all times.

This SET includes everything you need to get started right away - from helmet to foot pedal, welding rods to plasma accessories. Ideal for beginners and professionals who value versatility and reliability.

Features & benefits:

MIG/MAG: Welding with automatic wire feed (30-200 A), suitable for steel, stainless steel, aluminum
TIG DC: Precise welding with pulse function, lift arc and versatile parameter control (10-200 A)
MMA: stick electrode welding with hot start, arc force and anti-stick (10-170 A)
Plasma cutting: Cutting of materials up to 12 mm at 40 A with pilot ignition
2-cycle/4-cycle with pulse: For longer weld seams without interruption
IGBT & MCU: Efficient, stable arc control - optimized for continuous operation
Digital display: All parameters can be set at a glance
Overheating protection: Automatic safety if the load is too high

Technical data:

MIG/MAG welding current:	30 - 200 A
MMA welding current:	10 - 170 A
TIG welding current:	10 - 200 A
Plasma cutting current:	20 - 40 A
ED MIG/MAG:	200 A @ 40 %
ED MMA:	170 A @ 30 %
ED TIG:	200 A @ 40 %
ED Plasma:	40 A @ 30 %
Mains voltage:	1 x 230 V
Frequency:	50-60 Hz
Protection class:	IP23
Dimensions (L × W × H):	470 × 213 × 350 mm
Weight	12 kg
Wire diameter:	0.6 / 0.8 / 1.0 mm
Standards:	EN 60974-1 / IEC 60974-1

System overview (control panel functions):

1. digital voltmeter	6. gas overrun	11. thermal overload indicator
2. digital ammeter	7. pulse width	12. function selection
3. current reduction (down slope)	8. current rise	13. wire control
4. pulse current (Basic Current)	9. pulse frequency	14. 2-cycle / 4-cycle
5. welding current	10. operating display	15. pulse switch

:	Basic Series
Shipping weight:	26,92 kg
Item weight:	19,72 kg

Designation	TCM250
Weight of the welding machine	12 kg
Dimensions in mm (LxWxH)	470x213x350
Cooling system	Fan cooled
Welding machine type	Power source according to inverter principle
European standards	EN 60974-1 / IEC 60974-1
Mains voltage	1x 230V ±15%
Mains frequency	50/60Hz
Welding current range (TIG mode)	10-200 A
Welding current range (ARC mode)	10-170 A
Welding current range (CUT mode)	20-40 A
Welding current range (MIG mode)	30-200 A
Effective input current	16.8 A
Input current max	30.9 A
Required design of the single-phase generator	10 KVA
Duty cycle (ED) TIG 40°C	200A@ 40% 18V, 126A@ 100% 15V
Duty cycle (ED) ARC 40°C	170A@ 30% 26.8V, 93A@ 100% 23.7V
Duty cycle (ED) CUT 40°C	40A@ 30% 96V, 25A@ 100% 90V
Duty cycle (ED) MIG 40°C	200A@ 40% 24V, 126A@ 100% 15V
Open-circuit voltage (TIG/ARC/CUT/MIG)	60V / 60V / 330V / 60V
Degree of protection	IP23
Insulation class	H
