Article
number: M2225B1
WELDING EQUIPMENT SET MIG 225A
The MIG 225A from Vector Welding is a MIG/MAG
welding equipment with 30-225A in MIG/MAG mode, 30-170A in
MMA mode, and 10-200A in TIG mode (optional).
The
MIG/MAGWelding process with its automatic wire feed
is suitable for many welding applications, even when working in
hard-to-reach areas.

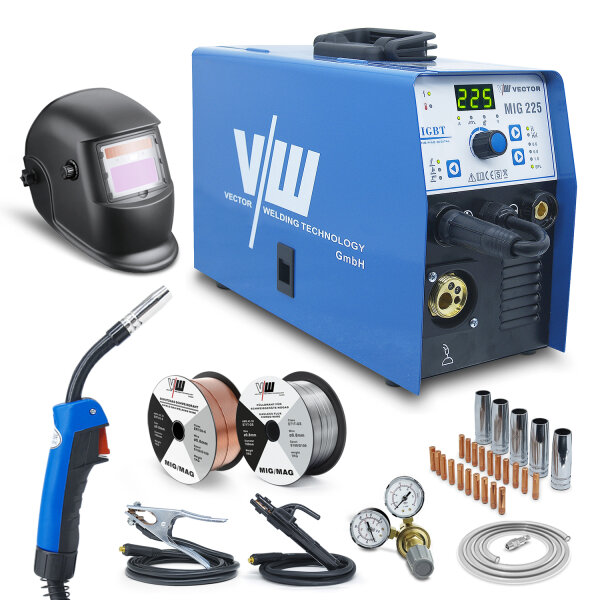

This set is a fully-equipped consisting of MIG MAG welding device MIG 225A, welding helmet, 2kg welding wire (wire roll), as well as a comprehensive accessory set (see scope of delivery).
MIG
225A PROPERTIES & ADVANTAGES:
-
MIG/MAG: Welding with automatic wire feed. In MIG welding argon (more rarely helium) is used as shielding gas, this process is preferably used for non-ferrous metals and stainless steel. The MAG process uses CO2 or a mixed gas of argon, CO2 and O2 as shielding gas and is mainly used for simple and low-alloy steel such as mild steel.
-
Settings according to wire thickness: If you set the wire thickness (0.6 | 0.8 | 1), an ampere (A) and wire feed speed adapted to the selected wire thickness appears. The amperage can be changed within the given range.
- In SPL Mode, amps and volts can be set independently. A higher volt slows the wire speed down. A lower volt accelerates the wire feed. This is a great advantage when an individual setting is required. With the help of the job memory the settings can be saved and easily reused at a later date.
-
inductance: The device has a continuously adjustable choke. This smoothes the welding current and changes the rate of current rise to improve the weld seam quality and precision
-
2 cycles/4 cycles (MIG/MAG and TIG)
-
MMA/STICK/E-HAND: coated electrodes are used - in this process the electrodes are arc carrier and filler metal in one.
-
hot start: every time the welding machine is restarted, overcurrent is provided and thus supports the ignition of the arc.
-
Arc Force: Melted material passes more easily to the workpieceover. Prevents the arc from being extinguished if contact between the electrode and the molten pool is caused by this material.
-
anti-stick automatically switches off the welding generator if the electrode sticks to the workpiece and has to be removed by hand without damaging the electrode clamp.
-
DC TIG welding ( optional: only possible with additional hose package and cables): Welding of almost all metals
-
Lift Arc: The ignition is triggered by contact with the welding cablewith the workpiece, then the torch can be lifted and the welding process starts with the selected parameters.
-
modern IGBT (Insulated Gate Bipolar Transistor) enables fast and thus low-loss switching of electrical currents
-
overheating protection
MIG
225A FEATURES:
MIG
225A TECHNICAL DETAILS:
| setting range welding current
(MIG/MAG mode) |
30 - 255 A |
| Adjustment range welding current
(MMA/STICK mode) |
30 - 170 A |
| Adjustment range welding current
(TIG mode) |
10 - 200 A |
| Duty cycle (ED) MIG/MAG 40°C |
225 A at 25V 35% |
| Duty cycle (ED) MMA/STICK
40°C |
170 A at 26.8V 35% |
| Duty cycle (ED) TIG 40°C |
200 A at 18V 35% |
| Mains voltage |
1 x 230 Volt |
| Mains frequency |
50 - 60 Hz |
| Protection class |
IP23 |
| Dimensions in mm (L x W x H) |
391 x 153 x 282 |
| Weight in kg |
8 |
| Standards |
EN60974-1 / IEC60974-1 |
| Wire diameter in mm |
0.6/0.8 |
| 1. On/Off |
4. welding mode |
7. 2 cycle/ 4 cycle |
| 2. superheat indicator |
5. display screen |
8. selection wire thickness |
| 3. parameter setting |
6.
ampere/inductance/burn-back/voltage |
| Shipping weight: | 16,87 kg |
| Item weight: | 14,72 kg |
MIG 225TECHNICAL DETAILS:
| Welding current setting range (MIG mode) | 30 - 225 A |
| Welding current setting range (MMA/STICK mode) | 30 - 170 A |
| Welding current setting range (TIG mode) | 10 - 200 A |
| Duty cycle (ED) MIG40°C, 10 min | 225 A at 25V 35% |
| Duty cycle (ED) MMA/STICK40°C, 10 min | 170 A at 26.8V 35% |
| Duty cycle (ED) TIG40°C, 10 min | 200 A at 18V 35% |
| Mains voltage | 230V +/- 15% |
| Mains frequency | 50 - 60 Hz |
| Effective input current | 24,8A |
| Input current (max.) | 41,9A |
| Required design of the single-phase generator | 15 kVA |
| Protection class | IP23 |
| Open circuit voltage (MIG/WIG/MMA) | 60V DC |
| Wire guide roller | 0,6/0,8/1 |
| Gas sequence (seconds) | 3 |
| Dimensions in mm (L x W x H) | 391 x 153 x 282 |
| Weight in kg | 8 |
| Standards | EN60974-1 / IEC60974-1 |
- 1× MIG 225A welding machine
- 1× Basic automatic welding helmet, black
- 1× Steel welding wire 0.8 mm (small spool)
- 1× NoGas filler wire 0.8 mm (small spool)
- 1× Pressure reducer for shielding gas (argon/CO₂)
- 5× MB15 gas nozzle
- 20× MB15 contact tip size 0.8
