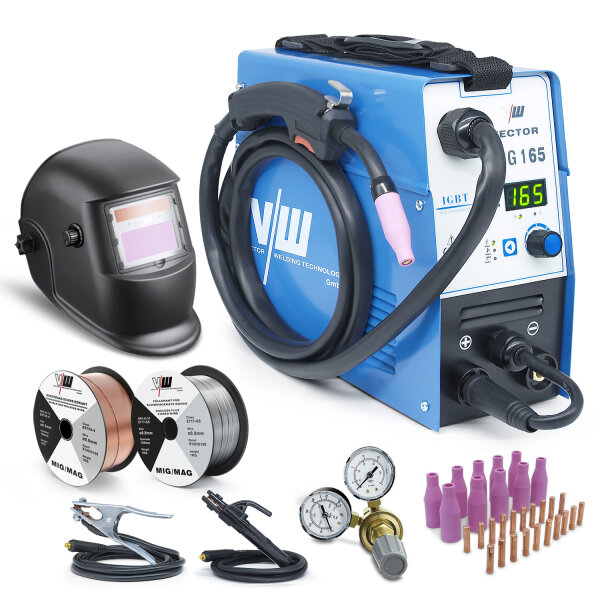

MIG welder with/without gas 165A, MMA 160A, IGBT, set with welding helmet, 2kg wire & accessories | MIG165

SKU: M2165B1
GTIN: 4251210408377
Category: MIG MAG
Brands: VECTOR WELDING

MIG welder with/without gas 165A, MMA 160A, IGBT, set with welding helmet, 2kg wire & accessories | MIG165

VECTOR WELDING MIG / MAG welding machine MIG 165 set

MIG / MAG 30-165A

2 bars / 4 bars

MMA / electrode 30-160A

IGBT

including 1kg no gas welding wire, 1kg steel welding wire, welding helmet & accessory set

251,26 €

excl. 19% VAT , plus (Standard)

Low stock level
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

item number: M2165B

WELDING DEVICE MIG 165A

With 6kg, the MIG165 by VECTOR WELDING is a light one and thus mobile filler wire welding machine. The welding machine offers the possibility of and welding without gas. The MIG165 can & nbsp; operate completely without gas and & nbsp; with it very flexible can be used. You need no-gas for this Welding wire, this one lets through its chemical Composition when welding a protective atmosphere arise, the supply of gas is not necessary. The MIG165 also has a Gas connection, so it can be welded using gas be. & nbsp;

The welding process with its automatic Wire feed works for many Welding applications, also for working on difficult to reaching places. The device performs in the MIG Mode & nbsp; 30-165A, in MMA mode (Electrode welding) 30-160A and 10-160A in optional TIG mode.

MIG 165A FEATURES & amp; ADVANTAGES:

Welding with automatic Wire feed . With and without gas!
The Wire feed speed can be regulated via the volts be: a higher volt leads to one slower wire feed, lower volts accelerate the Wire feed. A great benefit when an individual Setting is required.
Inductance: The device has Via a continuously adjustable throttle. These Smooths the welding current and changes it Rate of current rise so that the Weld seam quality and / precision is improved.
MMA / STICK / E-HAND: wrapped electrodes come too Use - in this process are the electrodes Arc beam and welding accessory in one.
Hotstart: each time the Welding equipment is provided with overcurrent and thereby supports the ignition of the arc.
Arc Force: Melted Material is more easily transferred to the workpiece. Prevents going out of the arc when it makes contact through this material comes between the electrode and the weld pool.
Anti-Stick switches the welding generator automatically switches off when the electrode is on Workpiece sticks and has to be removed by hand without the Electrode clamp closed damage.
DC-TIG Welding (optional: only possible with additional hose package and lines): Welding of almost all metals
Lift Arc: The ignition takes place on contact with to the Workpiece, then the burner can be lifted and The welding process starts with the selected ones Parameters.
modern IGBT (Insulated Gate Bipolar Transistor) enables fast and thus low-loss switching electrical currents
Overheating protection

MIG165 FEATURES:

MIG 165A TECHNICAL DETAILS:

setting range Welding current (MIG / MAG mode)	30 - 165 A
setting range Welding current (MMA / STICK mode)	30 - 160 A
setting range Welding current (TIG mode)	10 - 160 A
duty cycle (ED) MIG / MAG 40 ° C	165 A at 22 V 60%
duty cycle (ED) MMA / STICK 40 ° C	160 A at 26.4V 60%
duty cycle (ED) TIG 40 ° C	160 A at 16.4V 60%
Mains voltage	1 x 230 volt
Grid frequency	50 - 60 Hz
Degree of protection	IP23
Dimensions in mm (L x W x H)	320 x 125 x 250
Weight in kg	6
Standards	EN60974-1 / IEC60974-1
wire diameter	0.6 / 0.8

:	Basic Series
Shipping weight:	13,02 kg
Item weight:	10,87 kg

MIG 145 TECHNICAL DETAILS:

Welding current setting range (MIG mode)	30 - 165 A
Welding current setting range (MMA/STICK mode)	30 - 160 A
Welding current setting range (TIG mode)	10 - 160 A
Duty cycle (ED) MIG 40°C, 10 min	165 A at 22V 60%
Duty cycle (ED) MMA/STICK 40°C, 10 min	160 A at 26.4V 60%
Duty cycle (ED) TIG 40°C, 10 min	160 A at 16.4V 60%
Mains voltage	230V +/- 15%
Mains frequency	50 - 60 Hz
Effective input current	20,7A
Input current (max.)	26,7A
Required design of the single-phase generator	10 kVA
Protection class	IP23
Open circuit voltage (MIG/WIG/MMA)	60V DC
Wire guide roller	0,6/0,8
Gas sequence (seconds)	3
Dimensions in mm (L x W x H)	290 x 125 x 250
Weight in kg	5,5
Standards	EN60974-1 / IEC60974-1
