DC TIG welder 200A with plasma cutter 40A, MMA electrode, HF ignition, IGBT | CT520PD

SKU: K2031B
GTIN: 4251210410370
Category: TIG-CUT
Brands: VECTOR WELDING

DC TIG welder 200A with plasma cutter 40A, MMA electrode, HF ignition, IGBT | CT520PD

VECTOR WELDING Welding device with plasma cutter CT520 PD

DC TIG 10-200A

HF ignition

MMA/electrode 10-170A

Hotstart, Arc Force, Anti Stick

IGBT

335,29 €

excl. 19% VAT , plus (Standard)

Manufacturers recommended retail price: 599,00 €

Available immediately
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

pcs.

Article number: K2031B

WELDING EQUIPMENT + PLASMA CUTTER CT520 PD

The CT520 PD from Vector Welding is a combined device for welding and plasma cutting.

with 200A in TIG mode, 170A in MMA/electrode mode and plasma cutting with 40 A at 100V the device is well suited for installation, repair, maintenance and DIY.

The 6.5kg light CT520 PD offers everything you need for metal welding or cutting.

CT520 PD PROPERTIES & ADVANTAGES:

3in1 combi device: DC TIG, MMA/STICK, plasma cutting
TIG welding: welding of almost all metals
HF-ignition (TIG)
MMA/STICK/E-HAND: coated electrodes are used - in this process the electrodes are the arc carrier and filler metal in one.
Hot start: every time the welding unit is restarted, overcurrent is provided and thus supports the ignition of the arc.
Arc-Force: Melt off material is transferred to the workpiece more easily. Prevents the arc from going out if it is damaged by thisthis material causes contact between the electrode and the molten pool.
Anti-stick: automatically switches off the welding generator if the electrode sticks to the workpiece and has to be removed by hand without damaging the electrode clamp.
Plasma cutter: CUT function with the help of a plasma beam generated by electricity. This beam melts the material and removes it with compressed air - a precise cut is produced. This process can be used to cut all conductive metals (e.g. steel, stainless steel, aluminium, copper, etc.)
Cutting thickness: maximum 12mm (hand-guided), quality cut 8mm (hand-guided)
Modern IGBT (Insulated Gate Bipolar Transistor) enables fast and therefore low-loss switching of electrical currents
Overheating protection

CT520 PD FEATURES:

TIG

CT520 PD TECHNICAL DETAILS:

setting range welding current (TIG mode)	10-200 A
setting range welding current (MMA/STICK mode)	10 -170 A
setting range welding current (CUT mode)	20 - 40 A
switch-on time (ED) TIG 40°C	200 A at 18 V 40%
switch-on time (ED) MMA/STICK 40°C	170 A at 26.8 V 25%
switch-on time (ED) Plasma cutter 40°C	40 A at 100 V 40%
mains voltage	1 x 230 Volt
mains frequency	50 - 60 Hz
protection class	IP23S
Dimensions in mm (L x W x H)	425 x 152 x 291
Weight in kg	6.5
Standards	EN60974-1 / EC60974-1
Maximum cutting capacity (manually guided)	12 mm
Quality cutting capacity (manually guided)	8 mm

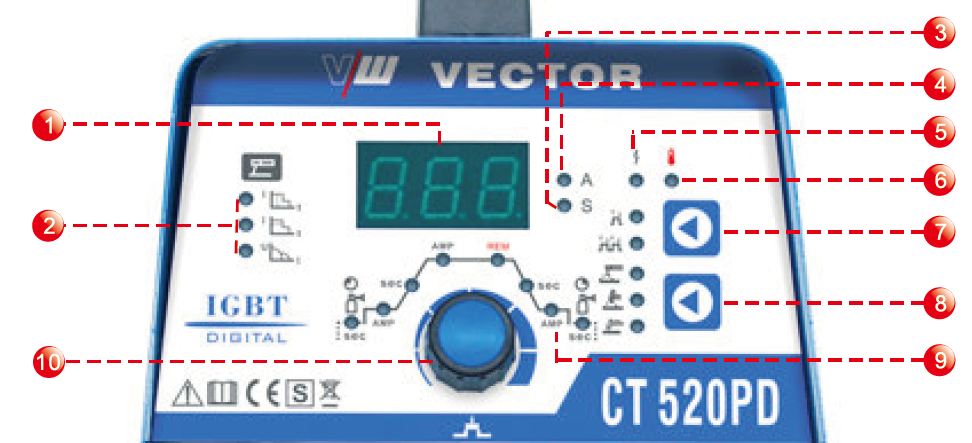

CT520 PD CONTROLLER:

1. display display	4. amperage/amperes	7 cycle/ 4 cycle
2. hotstart/Arc Force	5. on/off	8. mode (TIG/MMA/CUT)
3. time/seconds	6. superheat display	9. parameter settings

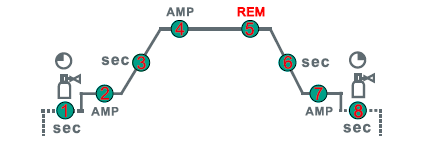

1. gas flow	5. REM=Remote/Remote control lamp
2. start current	6. current reduction
3. current rise	7. end current
4. welding current	8. gas after-run

:	Basic Series
Shipping weight:	14,00 kg
Item weight:	8,80 kg

duty cycle (ED) MMA / STICK 40 ° C

Welding current setting range (TIG & nbsp; mode)	10-200 A
Welding current setting range (MMA / STICK mode)	10 -170 A
Welding current setting range (CUT mode)	20 - 40 A
duty cycle (ED) TIG 40 ° C	200 A at 18 V 40%
170 A at 26.8 V 25%
Duty cycle (ED) plasma cutter 40 ° C	40 A at 100 V 40%
Mains voltage	1 x 230 volts
Mains frequency	50 - 60 Hz
Degree of protection	IP23S
Dimensions in mm (L x W x H)	425 x 152 x 291
Weight in kg	6.5
Standards	EN60974-1 / EC60974-1
Maximum cutting capacity (Hand guided)	12 mm
Quality cutting capacity (hand guided)	8 mm
