PLASMA CUTTER PARIS 500

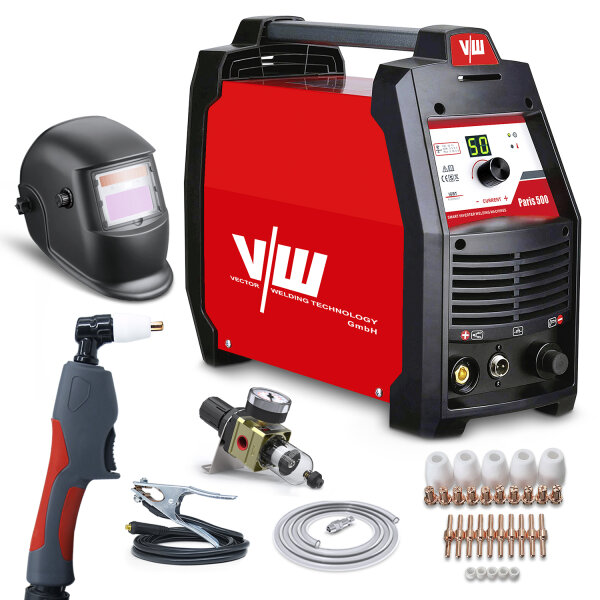

The Paris 500 from Vector Welding is a plasma cutter with contact ignition. Its light weight of 7 kg makes it a handy and reliable partner in the areas of installation, repair, maintenance and DIY. The cutting current is infinitely variable from 20-50A. The plasma cutter convinces with good cutting quality and high cutting speed. The Paris 500 achieves a maximum cutting thickness of 18 mm and average quality cuts up to 12 mm.This set is a full equipment consisting of plasma cutter Paris 500, welding helmet, welding gloves, as well as a comprehensive set of accessories and wearing parts (see scope of delivery).
Paris
500 CHARACTERISTICS & ADVANTAGES:
-
plasma cutter: A plasma beam generated by electricity melts the material and removes it with compressed air - a precise cut is produced. This process can be used to cut all conductive metals (e.g. steel, stainless steel, aluminium, copper, etc.)
-
high-frequency contact ignition: first-class ignition behaviour, when stroking over the workpiece the ignition occurs
-
cutting thickness steel: maximum up to 18mm (hand-guided). quality cut 14 mm (hand-guided)
-
cutting thickness aluminium: maximum up to 12mm (hand-guided). quality cut 8mm (hand-guided)
-
cutting current infinitely variable from 20-50A
-
modern IGBT (Insulated Gate Bipolar Transistor) enables fast and therefore low-loss switching of electrical currents
-
overheating protection
| : | Performance Series |
| Shipping weight: | 13,50 kg |
| Item weight: | 10,45 kg |
Paris 500TECHNICAL DETAILS:
| Adjustment rangeCutting current (CUT) | 20 - 50A |
| Cutting current at 40°C, 10min | 50 A at 100V 30% 38.7A at 95.5V 60% 27.3A at 91V 100% |
| Mains voltage | 230V +/- 15% |
| Mains frequency | 50 - 60 Hz |
| Effective input current | 18,7A |
| Input current (max.) | 33,9A |
| Required design of the single-phase generator | 12.8 kVA |
| Protection class | IP23 |
| Open circuit voltage | 266V DC |
| Quality cuts | 8mm |
| max. cutting capacity | 12mm |
| Dimensions in mm (L x W x H) | 320 x 160 x 380 |
| Weight in kg | 7 |
| Standards | EN60974-1 / IEC60974-1 |
| Cooling | Fan cooling |
- 1x Plasma welding machine Paris 500
- 1x Basic black automatic welding helmet
- 10x plasma nozzles PT-31 long (standard)
- 10x plasma electrodes PT-31 long (standard)
- 5x PT-31 swirl rings
- 5x ceramic caps PT-31 Long (standard)
- 1x ground clamp with ground cable (9 mandrel), 3m
- 1x water separator
- 1x Gas connection hose
- 1x plasma torch: PT-31 (9 mandrel, 2-pole), 4m
